Using Fuse Tubelight

​The circuit illustrated below can re use your thrown tube light. which usually blinks in normal circuit.

Using Fuse Tube light project

      A high DC voltage has advantage to glow a a weak florescent tube light. A weak florescent tube gets black at one edge. At black end Positive voltage should be applied and can be marked as anode and other clear end cathode can be marked for Negative voltage or electron will be supplied.

​

      Please see circuit Diagram. For converting AC to DC we have used a Rectifier Circuit. Choke Should be used in series with rectifier circuit for limiting current. Rectified voltage(DC) is applied to both end of the tube. Using this circuit you can glow tubelight for extra six month.

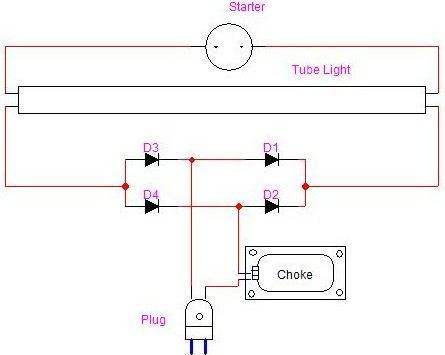

Circuit diagram for using fuse tubelight

  Circuit Diagram


Part List :

Choke or you can use 100W Bulb

Diode -IN4007 or 159 X 4pcs
